Philmac is a global leader in the design and manufacture of specialized fittings for polyethylene and other non-metallic pipes. The Philmac 3G Compression fittings line-up is the next generation of water line compression fittings and offers the most advanced and interchangeable solutions available on the market today. Heat-Line is pleased to offer a wide range of Philmac 3G Compression style fittings designed for connection of polyethylene water pipes which includes SIDR IPS, OD IPS, and CTS normal dimension pipes. Philmac fittings are constructed out of highly developed thermoplastic material and feature a solid ergonomic grip and exceptional interchangeability.
The Philmac 3G Compression series of fittings provide a compact, lightweight, and user-friendly design that reduces the overall possibility of pipe twist while remaining completely serviceable. In comparison to other compression fittings available on the market, Philmac 3G Compression fittings are designed to exceed required life expectancy ratings of 50 years and offer Philmac’s unique Slide and Tighten’ technology.
The Philmac 3G Compression fittings series is based on more than 5 decades of product design, marketing and manufacturing experience. The 3G series by Philmac represents the culmination of years of development and engineering, cutting edge manufacturing technology and demanding performance testing.
Projected Life of Compression Fittings
Philmac 3G Compression fittings are engineered and manufactured to exceed the established 50-year life expectancy required for polyethylene pipe and fitting materials. Philmac has taken every step necessary to ensure that every aspect of their fitting, including materials and design, is intended for life expectancies greater than those simply required.
Head Losses
To calculate head loss, the 3G Compression fittings can be replaced with an equivalent length of pipe. The following formula is used to estimate this equivalent length of polyethylene pipe based on the transmission of water;
L (feet) = ID (inch) x F
where L = head loss based on
equivalent pipe length (feet)
ID = pipe inner diameter (inch)
F = fitting constant
Fitting Constant (F)
Fitting
Fitting Constant (F)
90 Degree Elbow
2.5
90 Degree Tee- Straight Through
1
90 Degree Tee- Side Branch
5
Resistance to Impact
Philmac 3G Compression fittings are constructed with the highest quality thermoplastic materials available, which provide excellent resistance to impact as per ASTM D2444.
Abrasion Resistance
Philmac has engineered and manufactured the 3G Compression fitting series to be suitable for use with abrasive slurries. This means that the fittings will withstand the normal flow conditions found in urban, mining, industrial, rural water, and waste water applications.
Weathering
Philmac 3G Compression fittings are engineered from materials specifically designed for above ground installations without the need of additional protection. The thermoplastic materials used in the construction of the fittings contain pigments which prevent damage due to UV radiation.
Thermal Insulation
The Philmac 3G Compression fittings are constructed of polypropylene, which has a natural insulation factor 2000 times greater than common copper and 200 times greater than common steel. As a result, the thermal transfer of energy through the fitting body is greatly reduced, meaning less possibility of condensation.
Light Transmission
Simply said, the Philmac 3G Compression fittings do not transmit light. The all black bodied design eliminates any potential for light transmission through the fitting which protects potable water flowing through the fitting from growth of micro-organisms.
Effect on Water
Philmac 3G Series Compression fittings are CSA and NSF certified for potable water. They are found not to impart to water any odour, taste, colour, or any constituents in concentrations that could be harmful.
*For further information on Philmac 3G Compression series fittings specifications and standards download the Philmac 3G Technical Manual Standards System Design Considerations PDF and or the 3G ID, OD, and CTS Technical Manuals PDFs in the downloadable documents section.
Please see below three simplified installation procedures for Philmac 3G Compression fittings with conversion kits for IPS-SIDR, IPS-OD, and CTS standard dimension polyethylene piping.

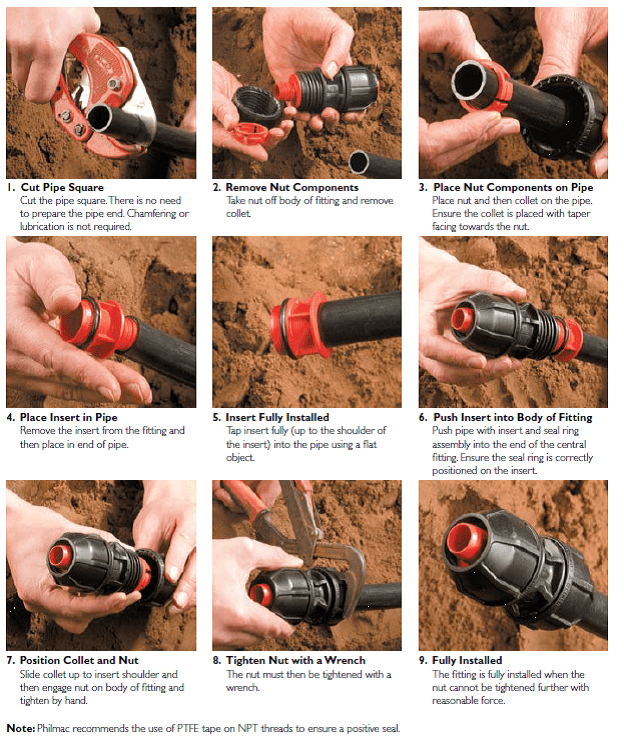

Installation Procedures for IPS-SIDR (ID)
Installation Procedures for CTS (OD)

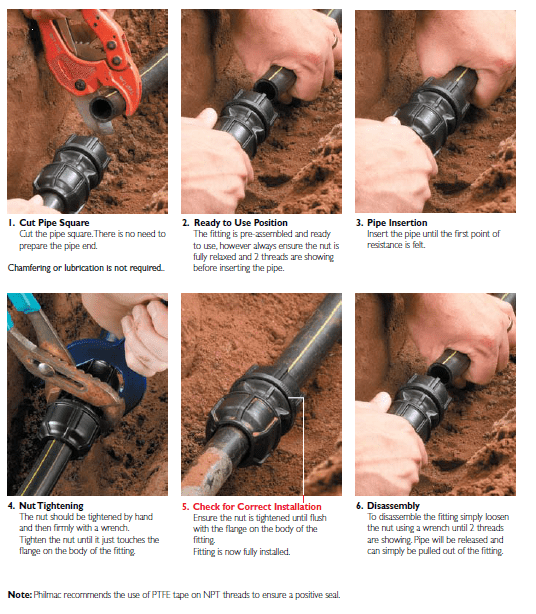

Installation Procedures for IPS-OD
*For further in-depth installation details on the Philmac 3G Series fittings download and refer to the Philmac 3G Technical Manual for the selected pipe type (SIDR, CTS, OD) in the downloadable documents section.
Benefits
Fast and Easy Installation
Minimal Number of Turns to Tighten
Includes Philmac’s unique Slide and Tighten’ technology
Interchangeable Insert Kits for OD IPS, SIDR IPS, and CTS
Compact Design
CSA and NSF Certified for Potable Water Use
Easily Disassembled and Reassembled
Complete Security with Visual Stop
No Loose Components
Dynamic Sealing Method
Designed to Minimize Pipe Twist
50 Year Plus Design Life
Made from Potable Advanced Thermoplastic Materials
Lightweight and High Strength
High Pressure Rating of 230 PSI
Copper Connection Kits Available
Specifications
Minimum 50-year product life expectancy
Excellent impact resistance as per ASTM D2444
Certified to 230 PSI as tested to ISO14236
NSF-61 (USA and Canada), fitting materials approved for use in drinking water applications (CTS, SIDR and UTC fittings only)
ANSI/ASME b1.20.1, pipe threads, general purpose (inch)
ASTM F1498, standard specification for tapered pipe threads 60 degrees for thermoplastic pipe and fittings
AS/ISO 7.1, pipe threads where pressure joints are made on the threads. Part 1 dimensions, tolerances, and designations
AWWA C800, underground service line valves and fittings
ISO 14236, plastic pipe and fittings- mechanical joint compression fittings use with polyethylene pipe in water supply systems
ASTM D2565, US Resistance, Grade 8
*For further information on Philmac 3G Series fittings specifications and standards download the Philmac 3G Technical Manual Standards System Design Considerations document in the downloadable documents section.
Philmac fittings can be purchased direct from Heat-Line.
Order direct: Once your order is confirmed, you can expect a prompt delivery. Most items ship same day or next. Request a quote online.
Philmac 3G SIDR Compression Fittings
Part Number PFA-075/100
Description: Female Adapter, 3/4 inch ID Compression x 1 inch FIP thread
Part Number: PMA-050/075
Description: Male Adapter, 1/2 inch CTS Compression x 3/4 inch MIP Thread
Part Number: PMA-075/100
Description: Male Adapter, 3/4 inch ID Compression x 1 inch MIP thread
Part Number: PMA-100/075
Description: Male Adapter, 1 inch ID Compression x 3/4 inch MIP Thread
Part Number: PC-050
Description: Coupling for 1/2 inch ID Compression
Part Number: PC-100
Description: Coupling for 1 inch ID Compression
Part Number: PC-125
Description: Coupling for 1 1/4 inch ID Compression
Part Number: PC-150
Description: Coupling for 1 1/2 inch ID Compression
Part Number: PC-200
Description: Coupling for 2 inch ID Compression
Part Number: PMA-100
Description: Male Adapter, 1 inch ID Compression x 1 inch MIP Thread
Part Number: PMA-100/125
Description: Male Adapter, 1 inch ID Compression x 1 1/4 inch MIP Thread
Part Number: PMA-125
Description: Male Adapter, 1 1/4 inch ID Compression x 1 1/4 inch MIP Thread
Part Number: PMA-125/100
Description: Male Adapter, 1 1/4 inch ID Compression x 1 inch MIP Thread
Part Number: PMA-150
Description: Male Adapter, 1 1/2 inch ID Compression x 1 1/2 inch MIP Thread
Part Number: PMA-200
Description: Male Adapter, 2 inch ID Compression x 2 inch MIP Thread
Part Number: PFA-100
Description: Female Adapter, 1 inch ID Compression x 1 inch FIP Thread
Part Number: PFA-125
Description: Female Adapter, 1 1/4 inch ID Compression x 1 1/4 inch FIP Thread
Part Number: PFA-200
Description: Female Adapter, 2 inch ID Compression x 2 inch FIP Thread
Part Number: PB-100
Description: Female Elbow Adapter, 1 inch ID Compression x 1 Compression
Part Number: PBF-100
Description: Female 90 Degree Elbow Adapter, 1 inch ID Compression x 1 inch FIP Thread
Part Number: PBF-100/125
Description: Female 90 Degree Elbow Adapter, 1 inch ID Compression x 1 1/4 inch FIP Thread
Part Number: PBF-125
Description: Female 90 Degree Elbow Adapter, 1 1/4 inch ID Compression x 1 1/4 inch FIP Thread
Part Number: PB-125
Description: Female Elbow Adapter, 1 1/4 inch ID Compression x 1 1/4 inch Compression
Part Number: PB-200
Description: Female Elbow Adapter, 2 inch ID Compression x 2 Compression
Part Number: PT-100
Description: Tee Adapter for 1 inch ID Compression
Part Number: PT-125
Description: Tee Adapter for 1 1/4 inch ID Compression
Part Number: PT-125/100
Description: Tee Adapter, 1 1/4 inch ID Compression x 1 inch ID Compression Branch
Part Number: PT-150/100
Description: Tee Adapter, 1 1/2 inch ID Compression x 1 inch ID Compression Branch
Part Number: PT-200
Description: Tee Adapter for 2 inch ID Compression
Part Number: PT-200/100
Description: Tee Adapter, 2 inch ID Compression x 2 inch ID Compression x 1 inch ID Compression Branch
Part Number: PTF-075/100
Description: Tee Adapter Female Branch Thread, 3/4 inch ID Compression x 3/4 inch ID Compression x 1 inch FIP Brand Thread
Part Number: PTF-100
Description: Tee Adapter Female Branch Thread, 1 inch ID Compression x 1 inch ID Compression x 1 inch FIP Branch Thread
Part Number: PTF-075/100
Description: Tee Adapter Female Branch Thread, 3/4 inch ID Compression x 3/4 inch ID Compression x 1 inch FIP Branch Thread
Part Number: PTF-125/075
Description: Tee Adapter Female Branch Thread, 1 1/4 inch ID Compression x 1 1/4 inch ID Compression x 3/4 inch FIP Branch Thread
Part Number: PTF-125/150
Description: Tee Adapter Female Branch Thread, 1 1/4 inch ID Compression x 1 1/4 inch ID Compression x 1 1/2 inch FIP Branch Thread
Part Number: PTF-150
Description: Tee Adapter Female Branch Thread, 1 1/2 inch ID Compression x 1 1/2 inch ID Compression x 1 1/2 inch FIP Branch Thread
Part Number: PTF-200
Description: Tee Adapter Female Branch Thread, 2 inch ID Compression x 2 inch ID Compression x 2 inch FIP Branch Thread
Philmac 3G CTS Compression Fittings
Part Number: PB-075CTS
Description: Female Elbow Adapter, 3/4 inch CTS Compression x 3/4 inch CTS Compression
Part Number: PC-100/075CTS
Description: Coupling Adapter, 1 inch CTS Compression x 3/4 inch CTS Compression
Part Number: PC-075CTS
Description: Coupling for 3/4 inch CTS Compression
Part Number: PC-100CTS
Description: Coupling for 1 inch CTS Compression
Part Number: PC-125CTS
Description: Coupling for 1 1/4 inch CTS Compression
Part Number: PC-150CTS
Description: Coupling for 1 1/2 inch CTS Compression
Part Number: PC-125/100CTS
Description: Coupling Adapter, 1 1/4 inch CTS Compression x 1 inch CTS Compression
Part Number: PMA-100/075CTS
Description: Male Adapter, 1 inch CTS Compression x 3/4 inch MIP thread
Part Number: PMA-075CTS
Description: Male Adapter, 3/4 inch CTS Compression x 3/4 inch MIP Thread
Part Number: PMA-100CTS
Description: Male Adapter, 1 inch CTS Compression x 1 inch MIP thread
Part Number: PMA-200CTS
Description: Male Adapter, 2 inch CTS Compression x 2 inch MIP Thread
Part Number: PMA-200/150CTS
Description: Male Adapter, 2 inch CTS Compression x 1 1/2 inch MIP Thread
Part Number: PFA-100/075CTS
Description: Female Adapter, 1 inch CTS Compression x 3/4 inch FIP thread
Part Number: PFA-075CTS
Description: Female Adapter, 3/4 inch CTS Compression x 3/4 inch FIP Thread
Part Number: PFA-100CTS
Description: Female Adapter, 1 inch CTS Compression x 1 inch FIP thread
Part Number: PFA-125CTS
Description: Female Adapter, 1 1/4 inch CTS Compression x 1 1/4 inch FIP Thread
Part Number: PFA-125/100CTS
Description: Female Adapter, 1 1/4 inch CTS Compression x 1 inch FIP thread
Part Number: PFA-125/125CTS
Description: Female Adapter, 1 1/4 inch CTS Compression x 1 1/4 inch FIP thread
Part Number: PFA-200CTS
Description: Female Adapter, 2 inch CTS Compression x 2 inch FIP Thread
Part Number: PFA-200/150CTS
Description: Female Adapter, 2 inch CTS Compression x 1 1/2 inch FIP Thread
Part Number: PT-075CTS
Description: Tee Adapter for 3/4 inch CTS Compression
Part Number: PT-100CTS
Description: Tee Adapter for 1 inch CTS Compression
Part Number: PT-150CTS
Description: Tee Adapter for 1 1/2 inch CTS Compression
Part Number: PTF-100/075CTS
Description: Tee Adapter Female Branch Thread, 1 inch CTS Compression x 1 inch CTS Compression x 3/4 inch FIP thread
Part Number: PTF-100CTS
Description: Tee Adapter Female Branch Thread, 1 inch CTS Compression x 1 inch CTS Compression x 1 inch FIP thread
Part Number: PTF-125CTS
Description: Tee Adapter Female Branch Thread, 1 1/4 inch CTS Compression x 1 1/4 inch CTS Compression x 1 1/4 inch FIP thread
Part Number: PTF-125/100CTS
Description: Tee Adapter Female Branch Thread, 1 1/4 inch CTS Compression x 1 1/4 inch CTS Compression x 1 inch FIP thread
Part Number: PTF-150CTS
Description: Tee Adapter Female Branch Thread, 1 1/2 inch CTS Compression x 1 1/2 inch CTS Compression x 1 1/2 inch FIP thread
Part Number: PTF-150/075CTS
Description: Tee Adapter Female Branch Thread, 1 1/2 inch CTS Compression x 1 1/2 inch CTS Compression x 3/4 inch FIP thread
* Fittings may not be supplied exactly as shown
Heat-Line’s extensive inventory of Philmac 3G fittings includes many other fittings of various sizes and pipe applications. Adapter kits for most body sized Philmac 3G fittings also available for standard dimension CTS, IPS-OD, IPS-SIDR, Copper, and Composite/ Q-Line pipes. Adapter kits allow the Philmac 3G series fitting body to easily connect to different major pipe types and dimensions by simply changing the nut, grip ring, and seal.
Heat-Line can also special order to provide Philmac Fittings for applications beyond their current inventory. For a greater variety of specialized Philmac fittings download the Philmac 2015-2016 Product Catalogue in the documents section. Contact Heat-Line directly for Heat-Line part numbers, availability, and pricing.
Q – What are Philmac 3G Compression fittings?
A – The Philmac 3G Compression fittings line-up is the next generation of water line compression fittings and offers the most advanced and interchangeable solutions available on the market today.
Q – Does the compression side of Philmac 3G Compression series fittings require the use of plumbers (PTFE Teflon) tape during installations?
A – Philmac 3G Compression fittings incorporate Philmac’s unique Slide and Tighten’ technology. All you need to do is cut the pipe straight and install the fitting as provided with adjustable/ pump pliers, no extra plumbers (PTFE Teflon) tape or solvents are required. When installing Philmac 3G Compression fittings with Male MIP or Female FIP adapter plumbers (PTFE Teflon) tape will be required to create a positive seal.
Q- What does the number within the square on the exterior of the Philmac 3G Compression fitting body mean?
A – The number within the square on the outside of the Philmac 3G Compression fitting body refers to the body size of the fitting. The body size of the fitting determines the applicable sizes of piping that the fitting body is compatible with. For instance, a body size 3 fitting can with the proper conversion kit adapt to 1-inch CTS, 3/4-inch IPS-SIDR, 3/4-inch IPS-OD, 3/4-inch Composite/ Q-Line and 3/4-inch Copper. For more information on body sizes and conversion kits please contact Heat-Line directly.
Q – Where can I find purchase price information for the Philmac 3G Compression fittings listed on this web page?
A – For pricing information on any of the Philmac 3G Compression fitting part numbers found on this page, or any further specialized fitting located in the Philmac Catalogue, please contact Heat-Line directly or request a quote online.
Q – Do I need tools to complete the installation of the Philmac 3G Compression fittings?
A – Yes. For most Philmac 3G Compression fittings a limited number of tools is required to complete the installation, this is generally limited to plastic pipe cutters and adjustable / pump pliers. For more specialized fittings such as the UTC model other tools may be required.
Q – Can you assemble and unassembled a Philmac 3G Compression fitting?
A – Yes. The Philmac 3G Compression fittings are designed so that as soon as the nut is loosened the grip ring releases, making disassembly of the fitting simple.
Q – What is the maximum pressure rating of Philmac 3G Compression fittings?
A – The maximum pressure rating of a Philmac 3G Compression fitting is 230 PSI as tested to ISO14236.
Q – What fitting types and pipe size ranges is the Philmac 3G Compression fitting available in?
A – The Philmac 3G Compression fittings are available in straight and reducing couplers, tees, elbows, male and female adapters and end caps ranging from 3/4 inch to 2 inches.
Q – Do Philmac 3G Compression fitting contain any lead?
A – No. Philmac 3G Compression fitting are completely lead free.
Q – What types of pipe can a Philmac 3G Compression fitting be used with?
A – Philmac offers the 3G Compression fitting in a wide variety of models for different pipe sizes and types. When a Philmac 3G Compression fitting model is properly selected and installed with the correct adapter or connection kit it will connect with the following pipe types:
Polyethylene and PEX CTS
Polyethylene IPS SIDR
Polyethylene IPS OD
PVC
Copper
Stainless Steel
ABS
Galvanized Iron
Lead

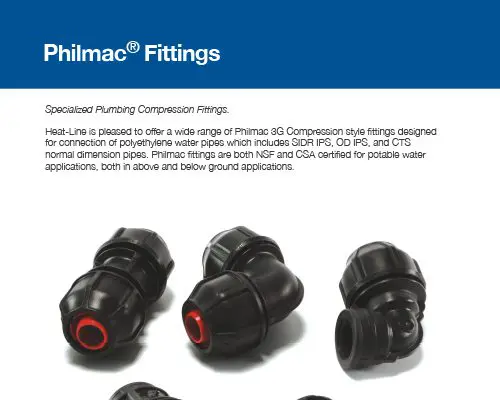

Philmac Catalogue

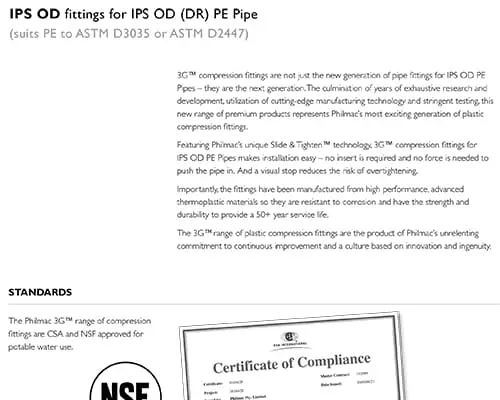

Philmac 3G IPS OD Technical Manual
Philmac 3G ID Technical Manual
Philmac 3G CTS Technical Manual
Philmac Fittings Overview
Philmac Fittings Technical Standards
The Philmac 3G Compression fittings series is based on more than 5 decades of product design, marketing and manufacturing experience. The 3G series by Philmac represents the culmination of years of development and engineering, cutting edge manufacturing technology and demanding performance testing.
Projected Life of Compression Fittings
Philmac 3G Compression fittings are engineered and manufactured to exceed the established 50-year life expectancy required for polyethylene pipe and fitting materials. Philmac has taken every step necessary to ensure that every aspect of their fitting, including materials and design, is intended for life expectancies greater than those simply required.
Head Losses
To calculate head loss, the 3G Compression fittings can be replaced with an equivalent length of pipe. The following formula is used to estimate this equivalent length of polyethylene pipe based on the transmission of water;
L (feet) = ID (inch) x F
where L = head loss based on
equivalent pipe length (feet)
ID = pipe inner diameter (inch)
F = fitting constant
Fitting Constant (F)
Fitting
Fitting Constant (F)
90 Degree Elbow
2.5
90 Degree Tee- Straight Through
1
90 Degree Tee- Side Branch
5
Resistance to Impact
Philmac 3G Compression fittings are constructed with the highest quality thermoplastic materials available, which provide excellent resistance to impact as per ASTM D2444.
Abrasion Resistance
Philmac has engineered and manufactured the 3G Compression fitting series to be suitable for use with abrasive slurries. This means that the fittings will withstand the normal flow conditions found in urban, mining, industrial, rural water, and waste water applications.
Weathering
Philmac 3G Compression fittings are engineered from materials specifically designed for above ground installations without the need of additional protection. The thermoplastic materials used in the construction of the fittings contain pigments which prevent damage due to UV radiation.
Thermal Insulation
The Philmac 3G Compression fittings are constructed of polypropylene, which has a natural insulation factor 2000 times greater than common copper and 200 times greater than common steel. As a result, the thermal transfer of energy through the fitting body is greatly reduced, meaning less possibility of condensation.
Light Transmission
Simply said, the Philmac 3G Compression fittings do not transmit light. The all black bodied design eliminates any potential for light transmission through the fitting which protects potable water flowing through the fitting from growth of micro-organisms.
Effect on Water
Philmac 3G Series Compression fittings are CSA and NSF certified for potable water. They are found not to impart to water any odour, taste, colour, or any constituents in concentrations that could be harmful.
*For further information on Philmac 3G Compression series fittings specifications and standards download the Philmac 3G Technical Manual Standards System Design Considerations PDF and or the 3G ID, OD, and CTS Technical Manuals PDFs in the downloadable documents section.
Please see below three simplified installation procedures for Philmac 3G Compression fittings with conversion kits for IPS-SIDR, IPS-OD, and CTS standard dimension polyethylene piping.
Installation Procedures for IPS-SIDR (ID)
Installation Procedures for CTS (OD)
Installation Procedures for IPS-OD
*For further in-depth installation details on the Philmac 3G Series fittings download and refer to the Philmac 3G Technical Manual for the selected pipe type (SIDR, CTS, OD) in the downloadable documents section.
Benefits
Fast and Easy Installation
Minimal Number of Turns to Tighten
Includes Philmac’s unique Slide and Tighten’ technology
Interchangeable Insert Kits for OD IPS, SIDR IPS, and CTS
Compact Design
CSA and NSF Certified for Potable Water Use
Easily Disassembled and Reassembled
Complete Security with Visual Stop
No Loose Components
Dynamic Sealing Method
Designed to Minimize Pipe Twist
50 Year Plus Design Life
Made from Potable Advanced Thermoplastic Materials
Lightweight and High Strength
High Pressure Rating of 230 PSI
Copper Connection Kits Available
Specifications
Minimum 50-year product life expectancy
Excellent impact resistance as per ASTM D2444
Certified to 230 PSI as tested to ISO14236
NSF-61 (USA and Canada), fitting materials approved for use in drinking water applications (CTS, SIDR and UTC fittings only)
ANSI/ASME b1.20.1, pipe threads, general purpose (inch)
ASTM F1498, standard specification for tapered pipe threads 60 degrees for thermoplastic pipe and fittings
AS/ISO 7.1, pipe threads where pressure joints are made on the threads. Part 1 dimensions, tolerances, and designations
AWWA C800, underground service line valves and fittings
ISO 14236, plastic pipe and fittings- mechanical joint compression fittings use with polyethylene pipe in water supply systems
ASTM D2565, US Resistance, Grade 8
*For further information on Philmac 3G Series fittings specifications and standards download the Philmac 3G Technical Manual Standards System Design Considerations document in the downloadable documents section.
Philmac fittings can be purchased direct from Heat-Line.
Order direct: Once your order is confirmed, you can expect a prompt delivery. Most items ship same day or next. Request a quote online.
Philmac 3G SIDR Compression Fittings
Part Number PFA-075/100
Description: Female Adapter, 3/4 inch ID Compression x 1 inch FIP thread
Part Number: PMA-050/075
Description: Male Adapter, 1/2 inch CTS Compression x 3/4 inch MIP Thread
Part Number: PMA-075/100
Description: Male Adapter, 3/4 inch ID Compression x 1 inch MIP thread
Part Number: PMA-100/075
Description: Male Adapter, 1 inch ID Compression x 3/4 inch MIP Thread
Part Number: PC-050
Description: Coupling for 1/2 inch ID Compression
Part Number: PC-100
Description: Coupling for 1 inch ID Compression
Part Number: PC-125
Description: Coupling for 1 1/4 inch ID Compression
Part Number: PC-150
Description: Coupling for 1 1/2 inch ID Compression
Part Number: PC-200
Description: Coupling for 2 inch ID Compression
Part Number: PMA-100
Description: Male Adapter, 1 inch ID Compression x 1 inch MIP Thread
Part Number: PMA-100/125
Description: Male Adapter, 1 inch ID Compression x 1 1/4 inch MIP Thread
Part Number: PMA-125
Description: Male Adapter, 1 1/4 inch ID Compression x 1 1/4 inch MIP Thread
Part Number: PMA-125/100
Description: Male Adapter, 1 1/4 inch ID Compression x 1 inch MIP Thread
Part Number: PMA-150
Description: Male Adapter, 1 1/2 inch ID Compression x 1 1/2 inch MIP Thread
Part Number: PMA-200
Description: Male Adapter, 2 inch ID Compression x 2 inch MIP Thread
Part Number: PFA-100
Description: Female Adapter, 1 inch ID Compression x 1 inch FIP Thread
Part Number: PFA-125
Description: Female Adapter, 1 1/4 inch ID Compression x 1 1/4 inch FIP Thread
Part Number: PFA-200
Description: Female Adapter, 2 inch ID Compression x 2 inch FIP Thread
Part Number: PB-100
Description: Female Elbow Adapter, 1 inch ID Compression x 1 Compression
Part Number: PBF-100
Description: Female 90 Degree Elbow Adapter, 1 inch ID Compression x 1 inch FIP Thread
Part Number: PBF-100/125
Description: Female 90 Degree Elbow Adapter, 1 inch ID Compression x 1 1/4 inch FIP Thread
Part Number: PBF-125
Description: Female 90 Degree Elbow Adapter, 1 1/4 inch ID Compression x 1 1/4 inch FIP Thread
Part Number: PB-125
Description: Female Elbow Adapter, 1 1/4 inch ID Compression x 1 1/4 inch Compression
Part Number: PB-200
Description: Female Elbow Adapter, 2 inch ID Compression x 2 Compression
Part Number: PT-100
Description: Tee Adapter for 1 inch ID Compression
Part Number: PT-125
Description: Tee Adapter for 1 1/4 inch ID Compression
Part Number: PT-125/100
Description: Tee Adapter, 1 1/4 inch ID Compression x 1 inch ID Compression Branch
Part Number: PT-150/100
Description: Tee Adapter, 1 1/2 inch ID Compression x 1 inch ID Compression Branch
Part Number: PT-200
Description: Tee Adapter for 2 inch ID Compression
Part Number: PT-200/100
Description: Tee Adapter, 2 inch ID Compression x 2 inch ID Compression x 1 inch ID Compression Branch
Part Number: PTF-075/100
Description: Tee Adapter Female Branch Thread, 3/4 inch ID Compression x 3/4 inch ID Compression x 1 inch FIP Brand Thread
Part Number: PTF-100
Description: Tee Adapter Female Branch Thread, 1 inch ID Compression x 1 inch ID Compression x 1 inch FIP Branch Thread
Part Number: PTF-075/100
Description: Tee Adapter Female Branch Thread, 3/4 inch ID Compression x 3/4 inch ID Compression x 1 inch FIP Branch Thread
Part Number: PTF-125/075
Description: Tee Adapter Female Branch Thread, 1 1/4 inch ID Compression x 1 1/4 inch ID Compression x 3/4 inch FIP Branch Thread
Part Number: PTF-125/150
Description: Tee Adapter Female Branch Thread, 1 1/4 inch ID Compression x 1 1/4 inch ID Compression x 1 1/2 inch FIP Branch Thread
Part Number: PTF-150
Description: Tee Adapter Female Branch Thread, 1 1/2 inch ID Compression x 1 1/2 inch ID Compression x 1 1/2 inch FIP Branch Thread
Part Number: PTF-200
Description: Tee Adapter Female Branch Thread, 2 inch ID Compression x 2 inch ID Compression x 2 inch FIP Branch Thread
Philmac 3G CTS Compression Fittings
Part Number: PB-075CTS
Description: Female Elbow Adapter, 3/4 inch CTS Compression x 3/4 inch CTS Compression
Part Number: PC-100/075CTS
Description: Coupling Adapter, 1 inch CTS Compression x 3/4 inch CTS Compression
1-800-584-4944
Part Number: PMA-100
Part Number: PC-100CTS
Part Number: PFA-100/075CTS
Part Number: PTF-100CTS
